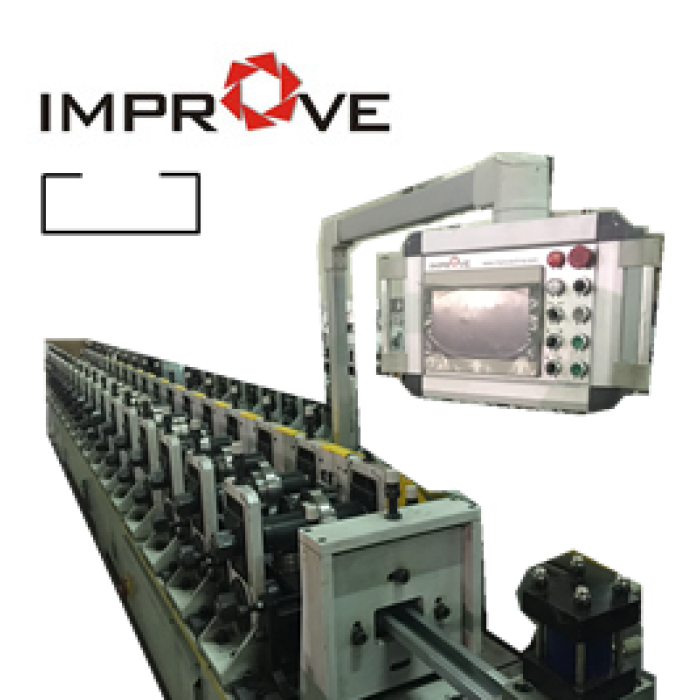

Garage Door Profile Roll Forming Machine
Garage Door Profile Roll Forming Machine



Categories | Garage Door Profile Machine |
---|---|
FOB port | Shanghai |
Terms of Payment | L/C, T/T |
Update Time | May 7,2025 |
Profile Thickness | 1.0mm |
---|---|
Requirements | Dimensional tolerances: +/- 1mm, +/- 1º angle Bow: 1.5mm Camber: 1.5mm Twist: 1.0º |
Working Speed | 20 meter/Min |
Technical Process我 | Decoiler → Guided Feeding → Roll Forming → Punching → Cutting to Length (Serve fly shear cutting) → Collection Table |
Main Motor | 5.5KW (Brand: JIE made in China) |
Sprocket | Tooth top high frequency quenching |
Bearing | C & U |
Lining | 1) Seamless Steel Tube 2) Single Surface Thickness >= 5mm |
Rollers | 1) Hardness Surface: GCr 15 2) Hardness Surface: HRC58℃-62℃ 3) Chromate Treatment |
Hydraulic Station Power | 2.2KW, hoses to be fitted with JIC standard, brand : Aeroquip |
VFD | SIEMENS OR SCHEIDER |
PLC | SIEMENS |
Collection Table | Normally 3 meter |
Terms & Conditions
1. Offer Validity: Be effect 120 days
2. Delivery terms: Within 120 business days after order confirmed by signature on sales contract.
3. Shipping port: FOB Shanghai
