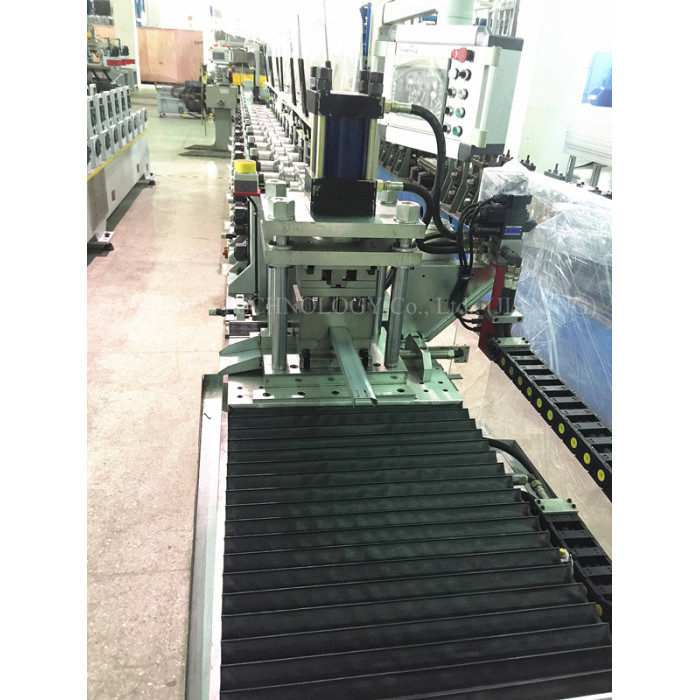

2"/3" C Profile Roll Forming Machine

2"/3" C Profile Roll Forming Machine

2"/3" C Profile Roll Forming Machine
2"/3" C Profile Roll Forming Machine2"/3" C Profile Roll Forming Machine2"/3" C Profile Roll Forming Machine2"/3" C Profile Roll Forming Machine2"/3" C Profile Roll Forming Machine
CategoriesGarage Door Profile Machine
FOB portShanghai
Terms of PaymentL/C, T/T
Update TimeMay 7,2025
Detail Information

Profile Thickness

1.5-2.0mm

Requirements

Dimensional tolerances: +/- 1mm, +/- 1º angle

Bow: 1.5mm

Camber: 1.5mm

Twist: 1.0º

Working Speed

10 meter/Min with punching

Technical Process

Decoiler → Guided Feeding → Roll Forming → Punching → Cutting to Length (Serve fly shear cutting) → Collection Table

Bearing Pedestal

1) Nodular Cast Iron   2) Milling the Centre   3) Black Finish

Bearing

C & U

Rollers

1) Hardness Surface: GCr 15

2) Hardness Surface: HRC58℃-62℃

3) Chromate Treatment

VFD

SIEMENS OR SCHEIDER

PLC

SIEMENS

Collection Table

Normally 2 meter
